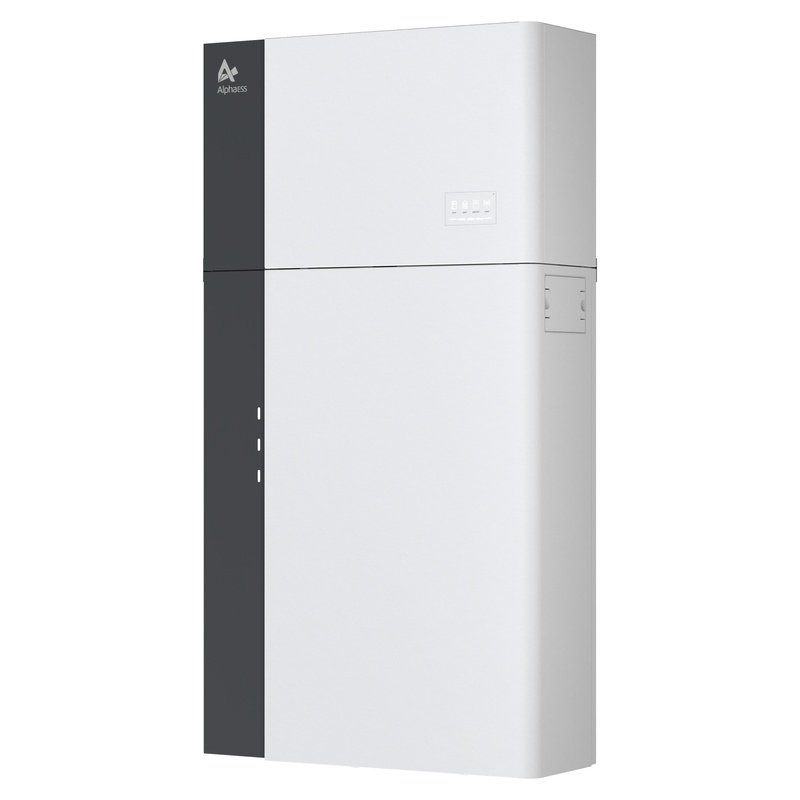

SMILE-G3-T12~T20 Three Phase Hybrid Energy Storage System
Error: Contact form not found.
SMILE-G3-T series high power three phase hybrid energy storage system from 12kW to 20kW, modular design, 200% PV input for commercial applications.
Original price was: $888.88.$666.66Current price is: $666.66.
Description
SMILE-G3-T12~T20 Three Phase Hybrid Energy Storage System
The SMILE-G3-T12~T20 series represents our high-capacity three-phase hybrid energy storage solution, delivering 12kW to 20kW of continuous power for demanding residential estates and light commercial applications. Engineered with 200% PV input capability, this system can connect to oversized solar arrays to maximize energy harvest, while supporting up to 49.2kWh of battery storage. Advanced features include VPP (Virtual Power Plant) readiness, three-phase unbalance support, and built-in aerosol fire suppression for enhanced safety. With 3 MPPT trackers and single battery fault isolation technology, this high-performance system ensures maximum uptime, efficiency, and peace of mind for property owners with significant power requirements.
Product Specifications
| Item | Specification |
| Rated Output Power | 12kW / 15kW / 20kW |
| Coupling Type | Hybrid |
| System Capacity Range | 7.7~23.0kWh / 8.0~24.0kWh / 8.2~49.2kWh (95% DoD) |
| Battery Type | LFP (Lithium Iron Phosphate) |
| Battery Module | SMILE-G3-BAT-3.8S / SMILE-G3-BAT-4.0S / SMILE-G3-BAT-8.2P |
| Battery Voltage | 96V / 256V |
| Expansion Method | 2~6 battery modules in series / 1~6 battery modules in parallel |
Key Features
- Modular design for flexible configuration
- 200% PV input support
- VPP (Virtual Power Plant) function
- Three-phase unbalance support
- Easy installation and maintenance
- 3 MPPT trackers
- Single battery fault isolation in series connection
- Built-in aerosol fire suppression for safety
Reliable Energy Storage Solution
Our residential energy storage systems are engineered for safety, longevity, and performance. Every model uses premium LFP (Lithium Iron Phosphate) battery cells, which offer superior thermal stability, longer cycle life, and enhanced safety compared to other lithium-ion chemistries. With intelligent battery management systems and rigorous quality control, these systems deliver dependable backup power, maximize solar self-consumption, and help homeowners reduce electricity bills through time-of-use arbitrage and peak shaving.
Applications
- Residential solar energy storage and self-consumption optimization
- Whole-home backup power during grid outages
- Time-of-use electricity bill management
- Peak shaving and load shifting for demand charge reduction
- Off-grid and hybrid solar power systems
- Virtual Power Plant (VPP) participation where available
Additional information
| Rated Output Power | 12kW / 15kW / 20kW |
|---|---|
| Coupling Type | Hybrid |
| System Capacity Range | 7.7~23.0kWh / 8.0~24.0kWh / 8.2~49.2kWh (95% DoD) |
| Battery Type | LFP (Lithium Iron Phosphate) |
| Battery Module | SMILE-G3-BAT-3.8S / SMILE-G3-BAT-4.0S / SMILE-G3-BAT-8.2P |
| Battery Voltage | 96V / 256V |
| Expansion Method | 2~6 battery modules in series / 1~6 battery modules in parallel |
描述
SMILE-G3-T12~T20 Three Phase Hybrid Energy Storage System
The SMILE-G3-T12~T20 series represents our high-capacity three-phase hybrid energy storage solution, delivering 12kW to 20kW of continuous power for demanding residential estates and light commercial applications. Engineered with 200% PV input capability, this system can connect to oversized solar arrays to maximize energy harvest, while supporting up to 49.2kWh of battery storage. Advanced features include VPP (Virtual Power Plant) readiness, three-phase unbalance support, and built-in aerosol fire suppression for enhanced safety. With 3 MPPT trackers and single battery fault isolation technology, this high-performance system ensures maximum uptime, efficiency, and peace of mind for property owners with significant power requirements.
Product Specifications
| Item | Specification |
| Rated Output Power | 12kW / 15kW / 20kW |
| Coupling Type | Hybrid |
| System Capacity Range | 7.7~23.0kWh / 8.0~24.0kWh / 8.2~49.2kWh (95% DoD) |
| Battery Type | LFP (Lithium Iron Phosphate) |
| Battery Module | SMILE-G3-BAT-3.8S / SMILE-G3-BAT-4.0S / SMILE-G3-BAT-8.2P |
| Battery Voltage | 96V / 256V |
| Expansion Method | 2~6 battery modules in series / 1~6 battery modules in parallel |
Key Features
- Modular design for flexible configuration
- 200% PV input support
- VPP (Virtual Power Plant) function
- Three-phase unbalance support
- Easy installation and maintenance
- 3 MPPT trackers
- Single battery fault isolation in series connection
- Built-in aerosol fire suppression for safety
Reliable Energy Storage Solution
Our residential energy storage systems are engineered for safety, longevity, and performance. Every model uses premium LFP (Lithium Iron Phosphate) battery cells, which offer superior thermal stability, longer cycle life, and enhanced safety compared to other lithium-ion chemistries. With intelligent battery management systems and rigorous quality control, these systems deliver dependable backup power, maximize solar self-consumption, and help homeowners reduce electricity bills through time-of-use arbitrage and peak shaving.
Applications
- Residential solar energy storage and self-consumption optimization
- Whole-home backup power during grid outages
- Time-of-use electricity bill management
- Peak shaving and load shifting for demand charge reduction
- Off-grid and hybrid solar power systems
- Virtual Power Plant (VPP) participation where available
